Bainai flanged single sphere ball flexible rubber expansion joints connector
2023-01-10 17:16
Details
Product Parameters Rubber expansion joints are generally used in heating and air conditioning systems, marine environments, sewage plants, industrial systems and for mild chemicals and oils. Rubber expansion joints permit the necessary motion and flexibility in a ‘working’ ship’s piping system. The compactness, resilience and low stress features make them ideally suited for shipboard piping systems. Sewage treatment plants, water treatment plants and air scrubber systems all employ the use of general rubber expansion joints. EPDM ,Neoprene, Buna/Nitrile, Hypalon, Butyl and natural rubber.

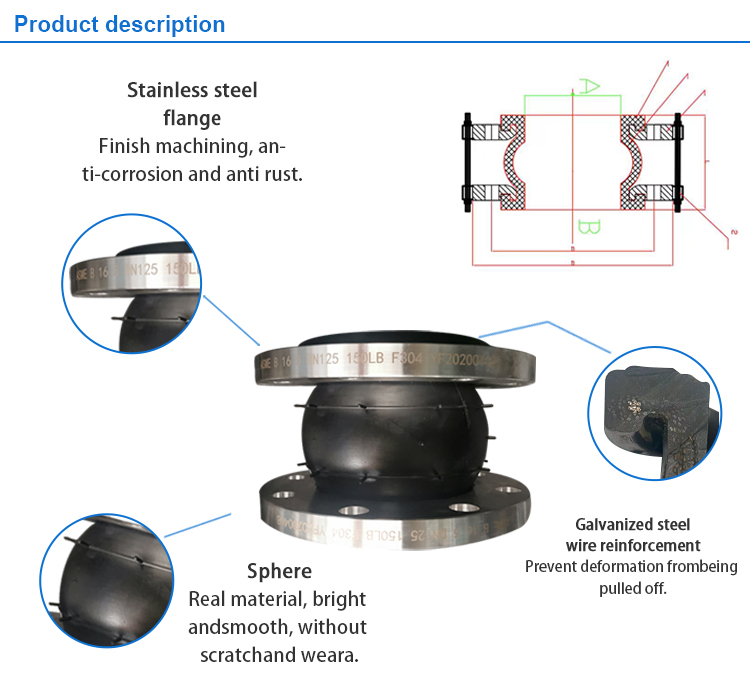

Products Description
Nominal diameter |
Length
(mm)
|
Axial displacement
|
Horizontal
Displacement
(mm)
|
Deflection
angle
|
Special
Length
(mm)
|
||
mm
|
inch
|
|
Compression
(mm)
|
Extension
(mm)
|
|
|
|
32
|
11/4
|
95
|
9
|
6
|
9
|
15°
|
130/150/200
|
40
|
11/2
|
95
|
10
|
6
|
9
|
15°
|
130/150/200
|
50
|
2
|
105
|
10
|
7
|
10
|
15°
|
130/150/200
|
65
|
21/2
|
115
|
13
|
7
|
11
|
15°
|
130/150/200
|
80
|
3
|
135
|
15
|
8
|
12
|
15°
|
130/150/200
|
100
|
4
|
150
|
19
|
10
|
13
|
15°
|
130/200
|
125
|
5
|
165
|
19
|
12
|
13
|
15°
|
130/150/200
|
150
|
6
|
180
|
20
|
12
|
14
|
15°
|
130/150/200
|
200
|
8
|
210
|
25
|
16
|
22
|
15°
|
130/150/200
|
250
|
10
|
230
|
25
|
16
|
22
|
15°
|
130/150/200
|
300
|
12
|
245
|
25
|
16
|
22
|
15°
|
130/150/200
|
350
|
14
|
255
|
25
|
16
|
22
|
15°
|
130/150/200
|
400
|
16
|
255
|
25
|
16
|
22
|
15°
|
130/150/200
|
450
|
18
|
255
|
25
|
16
|
22
|
15°
|
200
|
500
|
20
|
255
|
25
|
16
|
22
|
15°
|
200
|
600
|
24
|
260
|
25
|
16
|
22
|
15°
|
300
|
700
|
28
|
260
|
25
|
16
|
22
|
15°
|
300
|
800
|
32
|
260
|
25
|
16
|
22
|
15°
|
300
|
900
|
36
|
260
|
25
|
16
|
22
|
15°
|
300
|
1000
|
40
|
260
|
26
|
18
|
24
|
15°
|
300
|
1200
|
48
|
260
|
26
|
18
|
24
|
15°
|
300
|
Note: The range of size from DN25 to DN3000 are all available.
Please contact me for a quick quote.
